HKMG

Flexible packaging

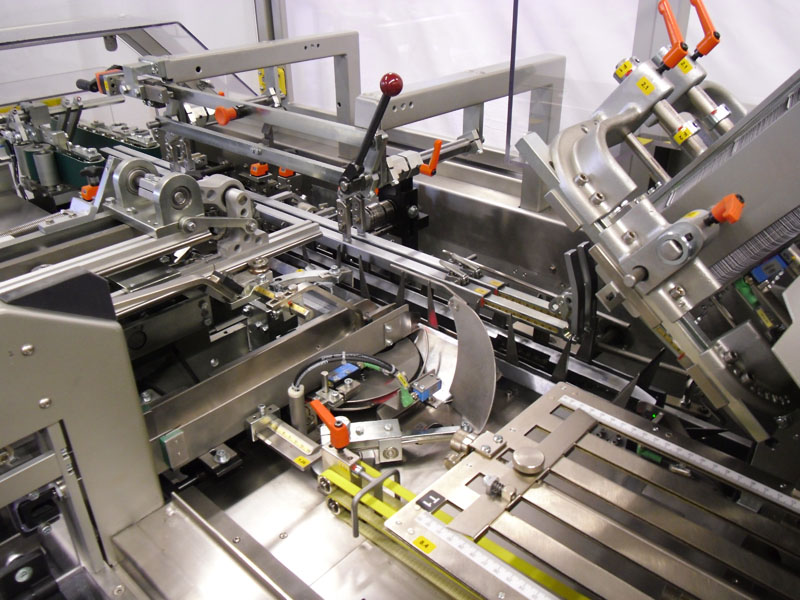

The HKMG is a flexible and the most compact and reliable cartoning machine. Adjustable and individually applicable - the HKMG was developed as stand-alone solution and is compatible to other assemblies.

It convinces with its compact design and its wide range of formats. Special packaging features of the HKMG are the flap- and hot glue-closure as format set, format extension (H min. 40mm up to 230mm), applicable in left->right or right->left machine directions through its compact design and the packaging of divers products per packaging unit with package insert.

Intergenerational, we offer the potential to update the preceding model CARTONETTA with enhanced motor technique, sensors, actuators, a centrally adjustable box-magazine, leaflet pre-insertion and the controlled insertion-channel for an active opening of the cardboard box during the insertion process.

For further convenience our retrofittable ADDons+ like code scanners, printer connection, folding devices and conveyor run-outs offer individual possibilities to pack your products fast, reliable and custom-made.

 HKMG
Output range: up to 70 cartons / min
Format range (AxBxH): min. 15mm x 15mm x 65mm max. 95mm x 66 mm x 180 mm
(special version) H min. 40mm max. 230mm, B min. 15mm, max. 80mm
Operation / partition: intermittently / 5“
Power unit: frequency-controlled main drive
Control: Siemens S7, Siemens MP 277 operating panel
Format changes: repeatable with positioning scale indicators
Dimension: 2.800mm x - 1.300mm / ca. - 900kg
Power consumption: 4-5 kvA, depending on extra equipment
Compressed air supply: 6 bar oil-free

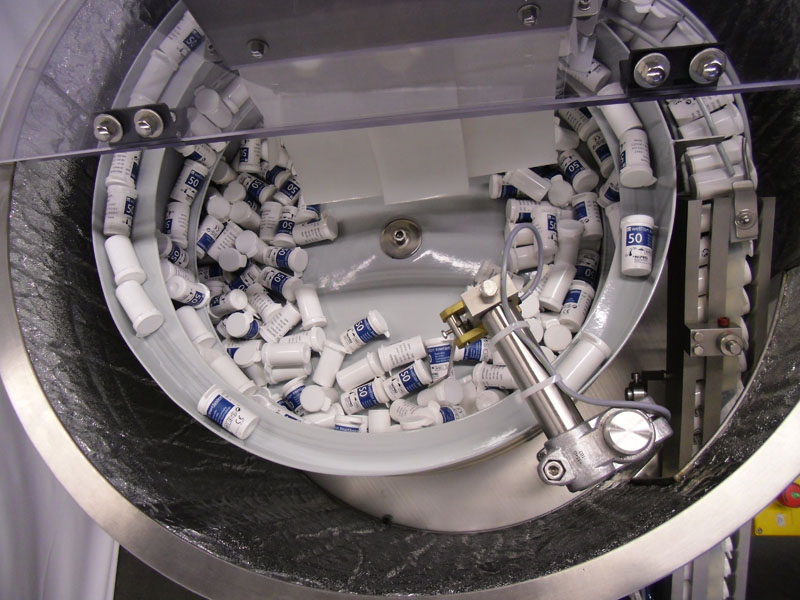

ADDons+: multiple product supply
closure units

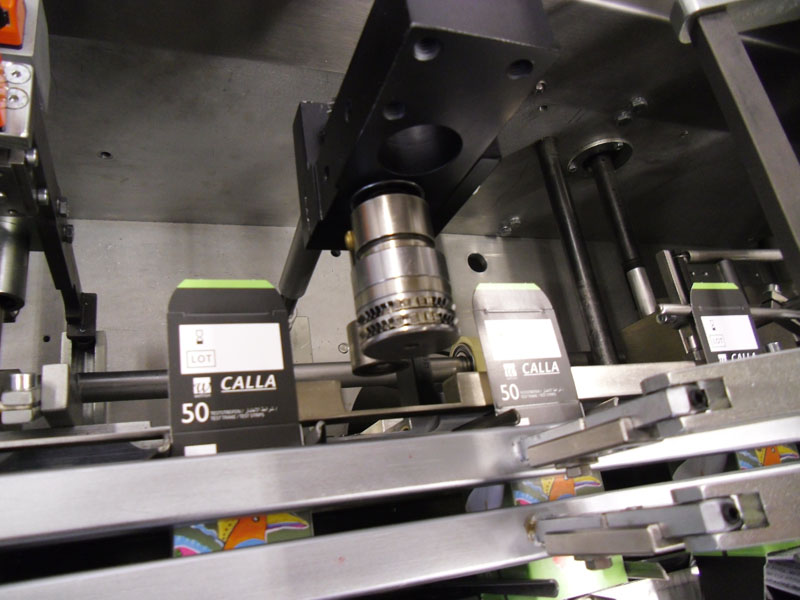

carton printing
labeling units
code reader
camera control unit
track & trace

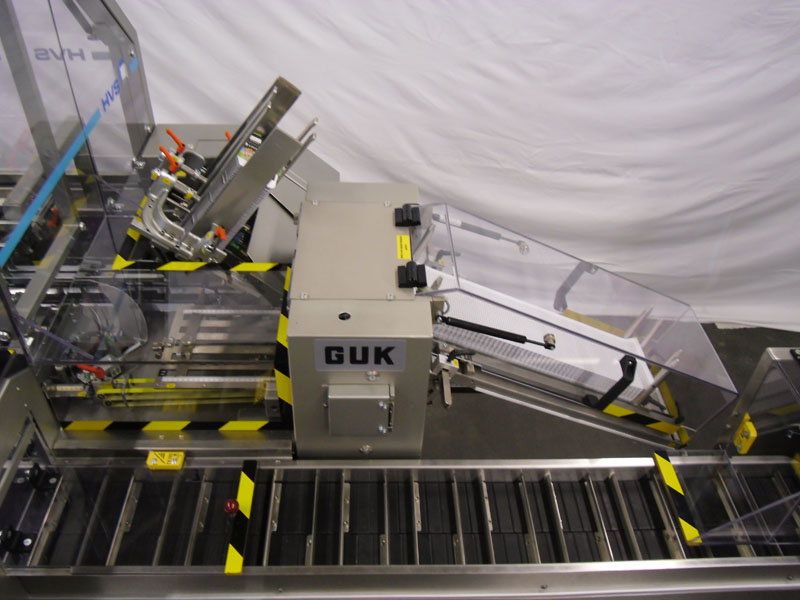

folding machines
check weighers
positioner and / or grouping units
