HKMC
Fast packaging

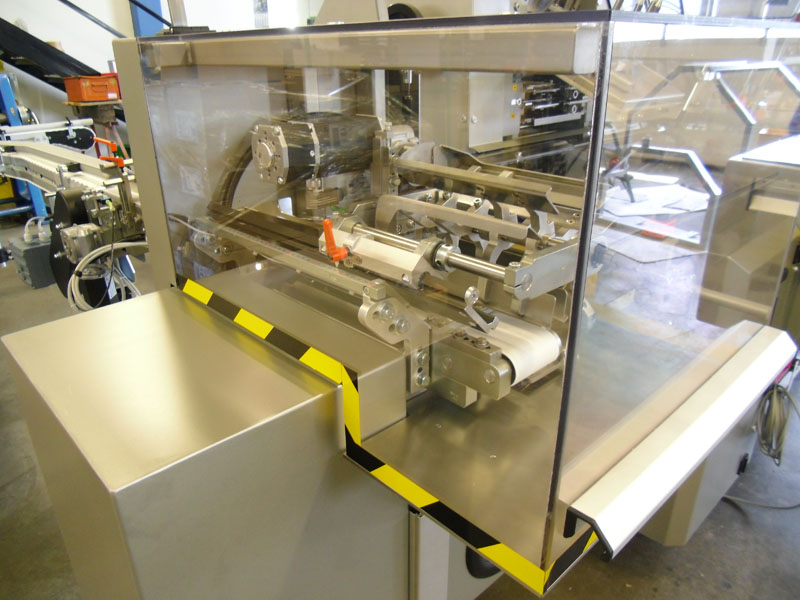

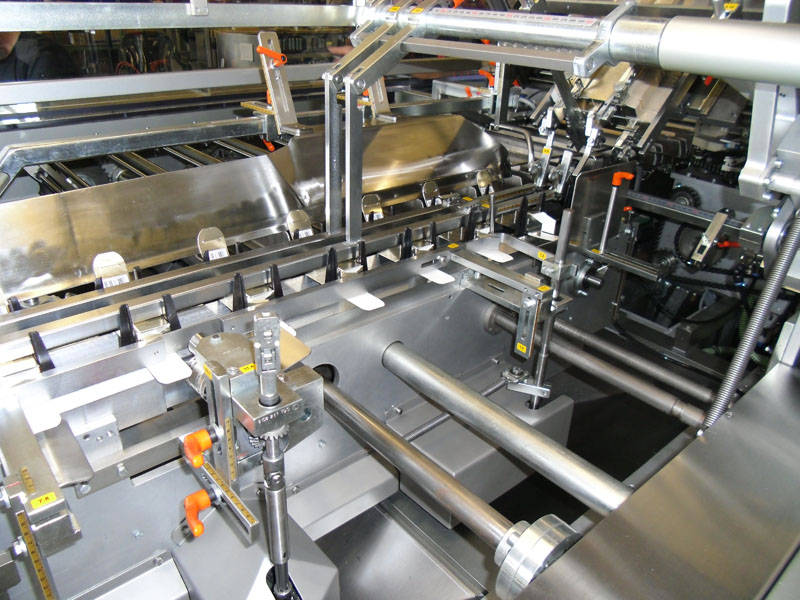

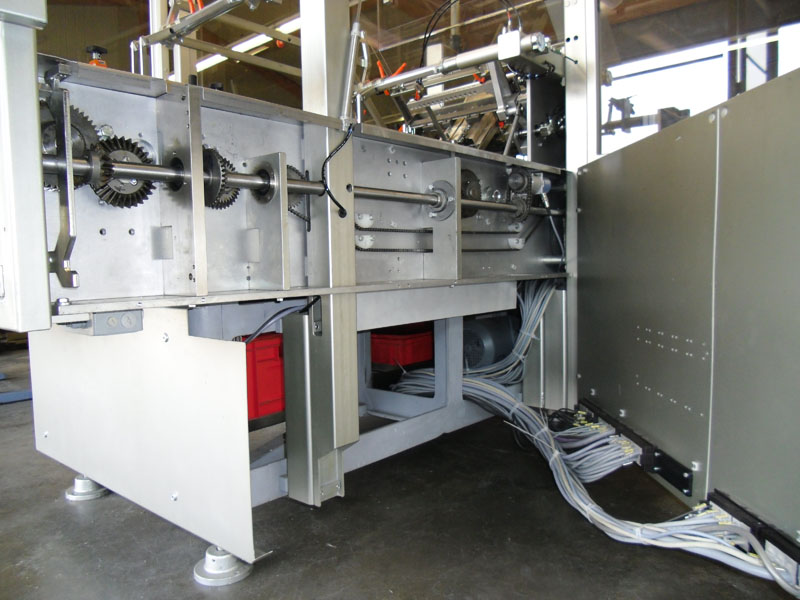

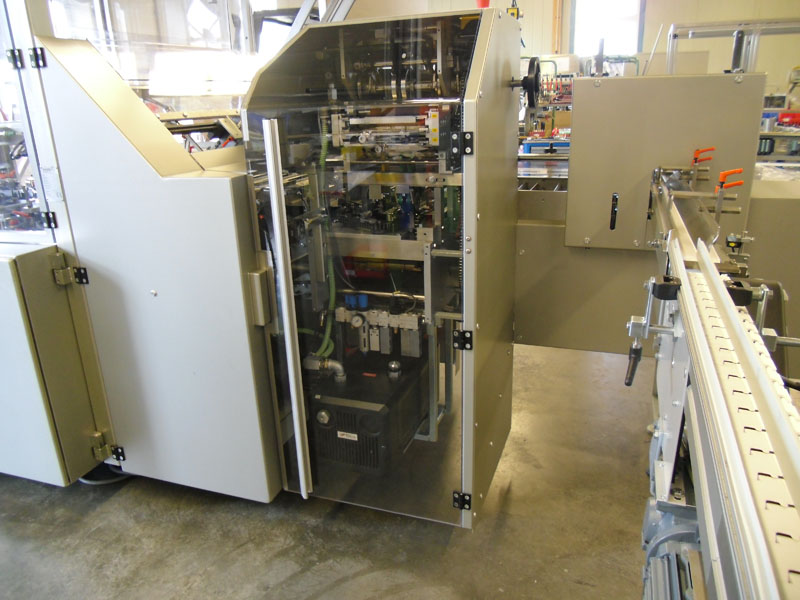

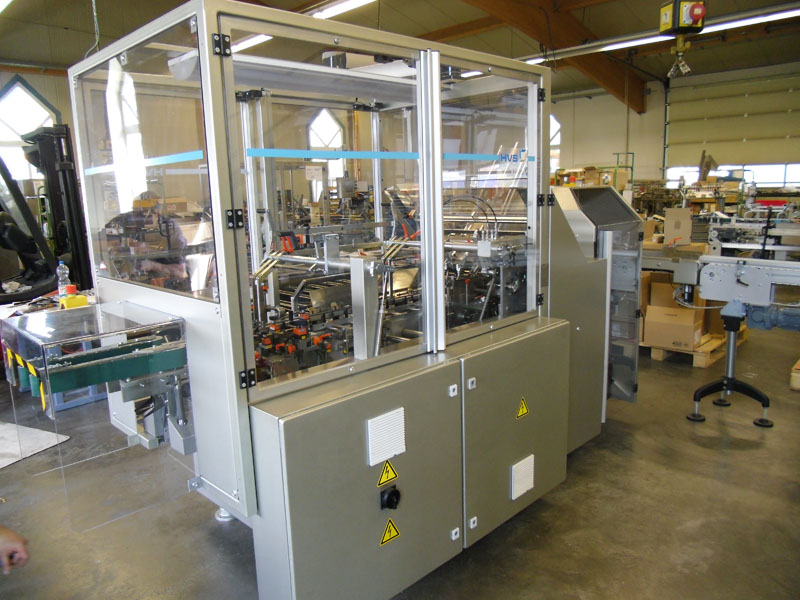

The HKMC is the mainstay in medium speed of our packaging machines. Depending on the product and packaging, the output is up to 150 folded boxes per minute.
A characteristic is the fast format change with an extremely wide range of format’s (5”, 7”, 10” machine pitch). Another advantage of the HKMC is the possibility of format extensions. The building block of the HKMC is the preceding cardboard boxes measuring 300mm in length and 220mm in height can be processed with this extensions.
The foundation of the HKMC is the CONTINA features. The assemblies of the CONTINA were updated to the state of the art and refurbished. HVS can recondition your existing CONTINA. The CONTINA can be restored and upgraded with our more sophisticated features. As an option HVS offers retrofittable ADDons+ to further enhance your efficiency. Individual configured to your need, the HKMC can for a example be updated with a code scanner, a camera control system, a folding device and a cardboard box printer.
ADDons+
| HKMC | |
|---|---|
| Output range: | up to 150 cartons / min |
| Format range (AxBxH): | min. 20mm x 15mm x 65mm |
| max. 220mm x 120mm x 300mm | |
| Operation / partition: | concurrent / 5“, 7“ or 10“ |
| Power unit: | frequency-controlled main drive |
| Control: | Siemens S7, Siemens MP 277 operating panel |
| Format changes: | repeatable with positioning scale indicators |
| Dimension: | 3.050mm x 1.610mm / ca. - 1.200Kg |
| Power consumption: | 4-5 kvA, depending on extra equipment |
| Compressed air supply: | 6 bar oil-free |
| ADDons+: | multiple product supply closure units carton printing labeling units code reader camera control unit track & trace folding machines check weighers positioner and / or grouping units |
